Admin API - Rating Plan

Create rating plan (shell)

create_rating.txt

Instructions

1. SSH into your Config Controller Node (node1) as training
2. Navigate to the admin_api directory

   cd /home/training/admin_api


3. Create a txt file called create_rating.txt

   vi create_rating.txt


Populate the file

Instructions

1. Populate the newly created text file with the following data

   {
       "currency": "USD",
       "id": "engineering",
       "mapRules": {
           "BI": {
               "ruleclassType": "BYTES_IN",
               "rules": [
                   {
                       "first": "0",
                       "second": "0"
                   }
               ]
           },
           "BO": {
               "ruleclassType": "BYTES_OUT",
               "rules": [
                   {
                       "first": "0",
                       "second": "0"
                   }
               ]
           },
           "HD": {
               "ruleclassType": "HTTP_DELETE",
               "rules": [
                   {
                       "first": "0",
                       "second": "0"
               }
               ]
           },
           "HG": {
               "ruleclassType": "HTTP_GET",
               "rules": [
                   {
                       "first": "0",
                       "second": "0"
                   }
               ]
           },
           "HP": {
               "ruleclassType": "HTTP_PUT",
               "rules": [
                   {
                       "first": "0",
                       "second": "0"
                   }
               ]
           },
           "SB": {
               "ruleclassType": "STORAGE_BYTE",
               "rules": [
                   {
                       "first": "1",
                       "second": "2"
                   },
                   {
                       "first": "10",
                       "second": "1.5"
                   },
                   {
                       "first": "11",
                       "second": "1"
                   }
               ]
           }
       },
       "name": "Engineering-RP"
   }


Info

The rating plan payload contains a number of areas of note, and all need to be included, but not all need to used
"currency": "USD", (Set the Currency for the rating plan)
"id": "engineering", (Give the rating plan a name)

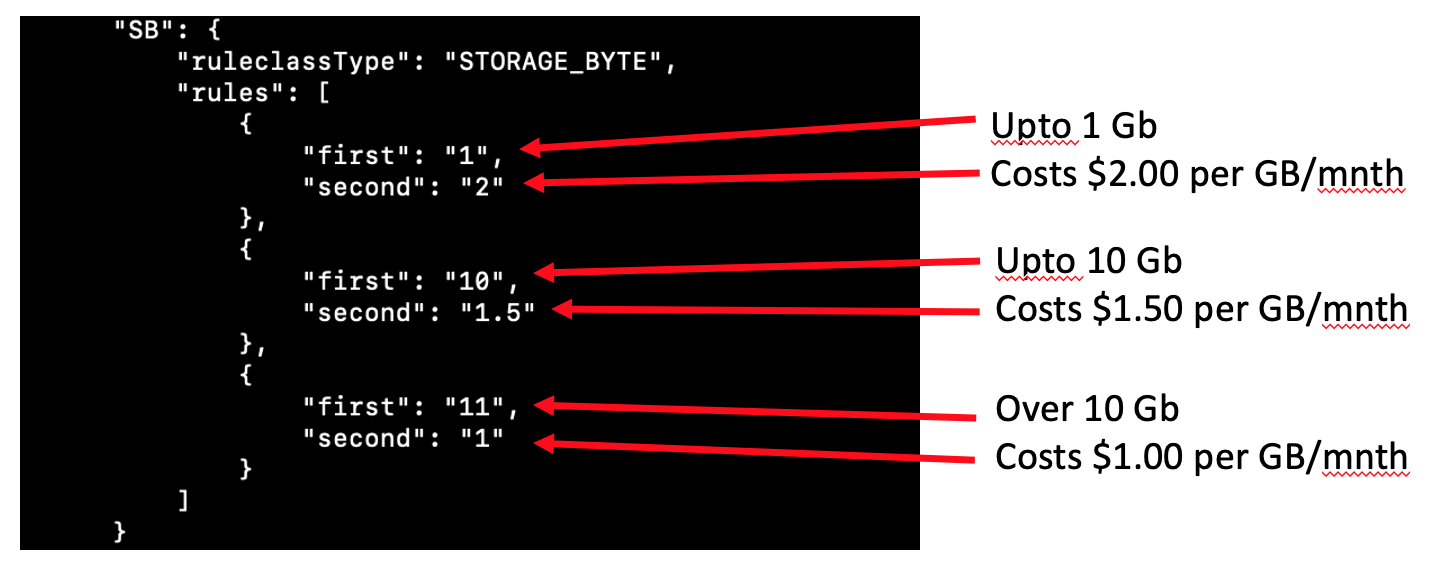

This is followed by a number of map rules, each with a Key Pair called first: and second:
First: (The set limit),
second: the price within this limit.

---

Instructions

Use the supplied payload to create a Ratings policy called engineering with the Billing policy for Storage Bytes described in the previous slide, confirm it is created on completion.

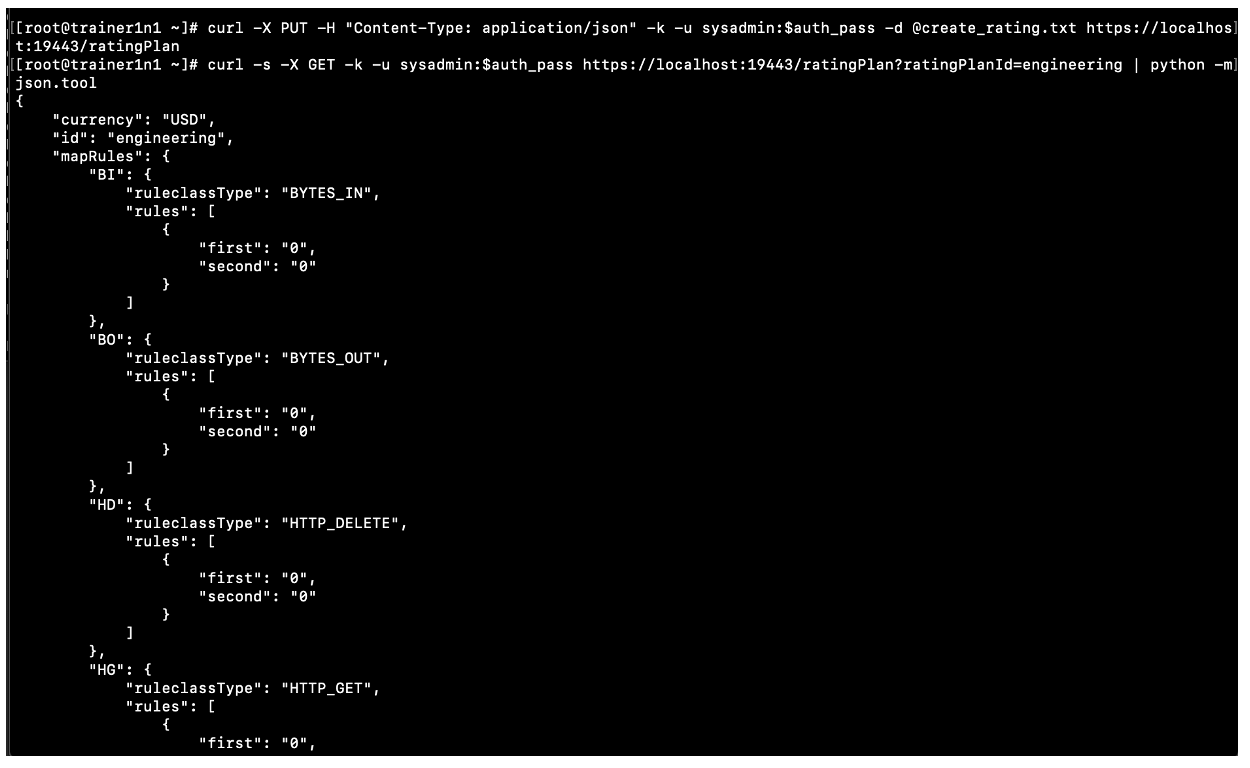

curl -X PUT -H "Content-Type: application/json" -k -u sysadmin:$auth_pass -d @create_rating.txt https://localhost:19443/ratingPlan

---

Instructions

Check the rating plan from the CLI using

curl -s -X GET -k -u sysadmin:$auth_pass https://localhost:19443/ratingPlan?ratingPlanId=engineering | python3 -mjson.tool

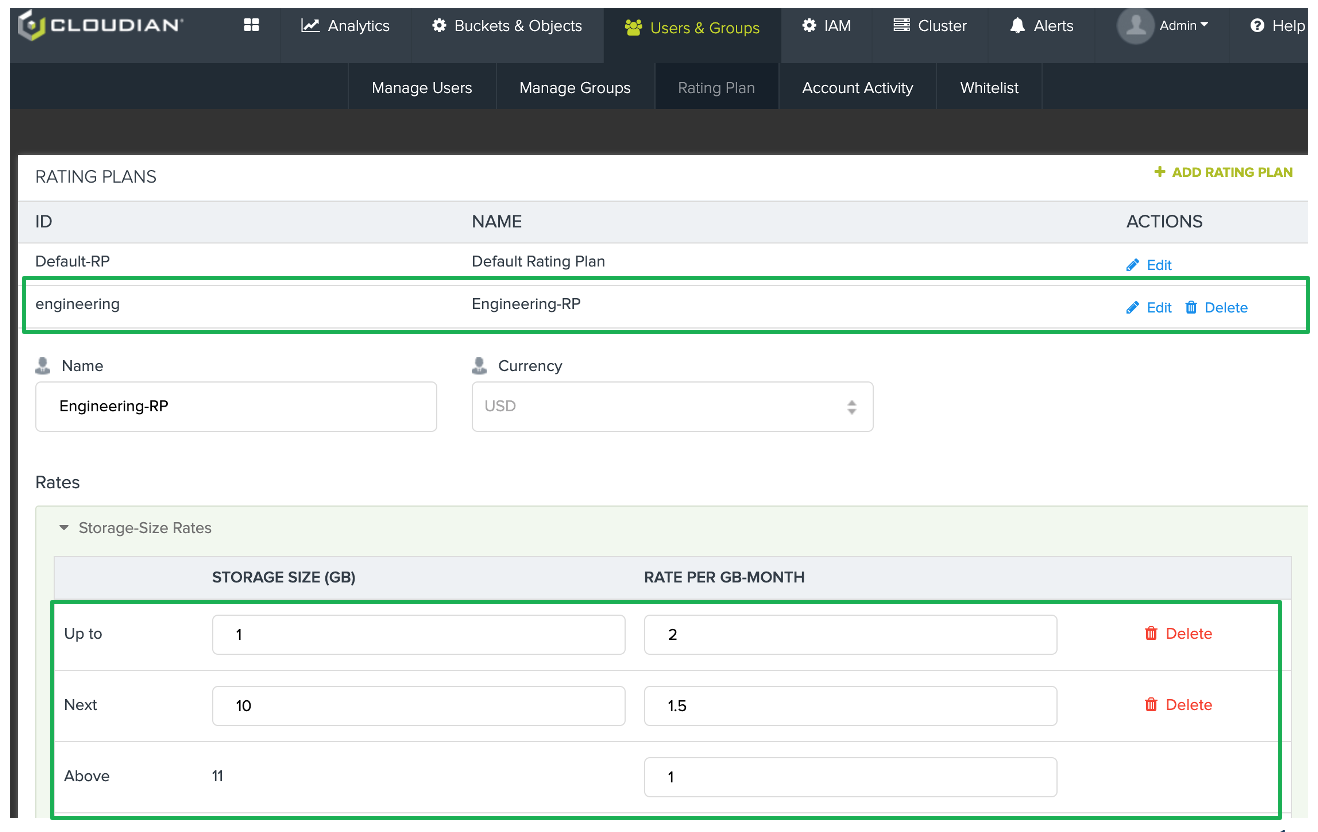

or the CMC

---
