Admin API - QoS

Create QOS for user (shell)

Instruction

  1. SSH into your Config Controller Node (node1) as training
  2. First lets ensure there are no QOS limits for engineer1
    curl -s -X GET -k -u sysadmin:$auth_pass "https://$admin_endpoint:19443/qos/limits?userId=engineer1&groupId=Engineering" | python3 -mjson.tool
  3. A Value of -1 denotes there is no QOS limit for each of the QOS metrics.

Instruction

  1. Set QOS Storage Bytes for engineer1 to 10240 Kibibytes
    curl -s -X POST -k -u sysadmin:$auth_pass "https://$admin_endpoint:19443/qos/limits?userId=engineer1&groupId=Engineering&storageQuotaKBytes=10240&storageQuotaCount=-1&wlRequestRate=-1&hlRequestRate=-1&wlDataKBytesIn=-1&hlDataKBytesIn=-1&wlDataKBytesOut=-1&hlDataKBytesOut=-1"
  2. If we get an error first check if QoS has been enabled. If not, enable it now.

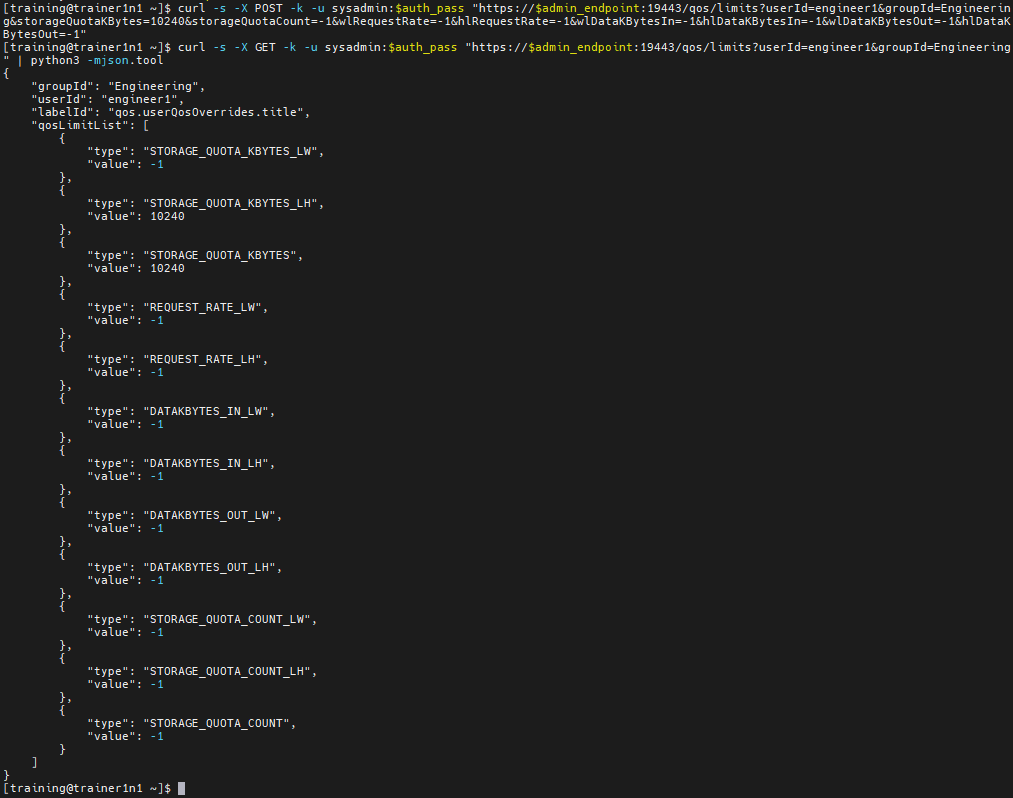

  3. We have to define an amount for ALL Limits even if we are only changing 1. We can check it has been updated using the previous curl command
    curl -s -X GET -k -u sysadmin:$auth_pass "https://$admin_endpoint:19443/qos/limits?userId=engineer1&groupId=Engineering" | python3 -mjson.tool

Test QOS (Shell)

Instructions

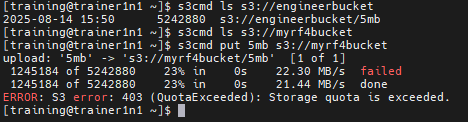

  1. Let's list the contents of the engineerbucket and the myrf4bucket
    s3cmd ls s3://engineerbucket
s3cmd ls s3://myrf4bucket
  2. Upload 5Mib file to myrf4bucket
    s3cmd put 5mb s3://myrf4bucket
  3. Ensure that the upload fails. It fails because we already uploaded a 5Mb object into engineerbucket. We have set a QOS limit of 10Mib for the engineer1 users' buckets, this means the amount of data stored for the whole user must be less than 10Mib. 5Mib+5Mib would not be less than 10Mib.

Instructions

  1. If we want to allow up to & including 10Mib we must use 1 byte more in the QOS setting

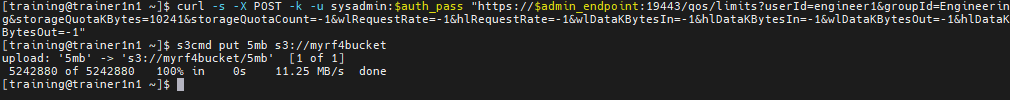

    curl -s -X POST -k -u sysadmin:$auth_pass "https://$admin_endpoint:19443/qos/limits?userId=engineer1&groupId=Engineering&storageQuotaKBytes=10241&storageQuotaCount=-1&wlRequestRate=-1&hlRequestRate=-1&wlDataKBytesIn=-1&hlDataKBytesIn=-1&wlDataKBytesOut=-1&hlDataKBytesOut=-1"
  2. This increases the QOS by 1 kibibyte (10241 instead of 10240). You can now upload the second 5mib object
    s3cmd put 5mb s3://myrf4bucket
  3. Lets set the QOS back to Unlimited
    curl -s -X POST -k -u sysadmin:$auth_pass "https://$admin_endpoint:19443/qos/limits?userId=engineer1&groupId=Engineering&storageQuotaKBytes=-1&storageQuotaCount=-1&wlRequestRate=-1&hlRequestRate=-1&wlDataKBytesIn=-1&hlDataKBytesIn=-1&wlDataKBytesOut=-1&hlDataKBytesOut=-1"
